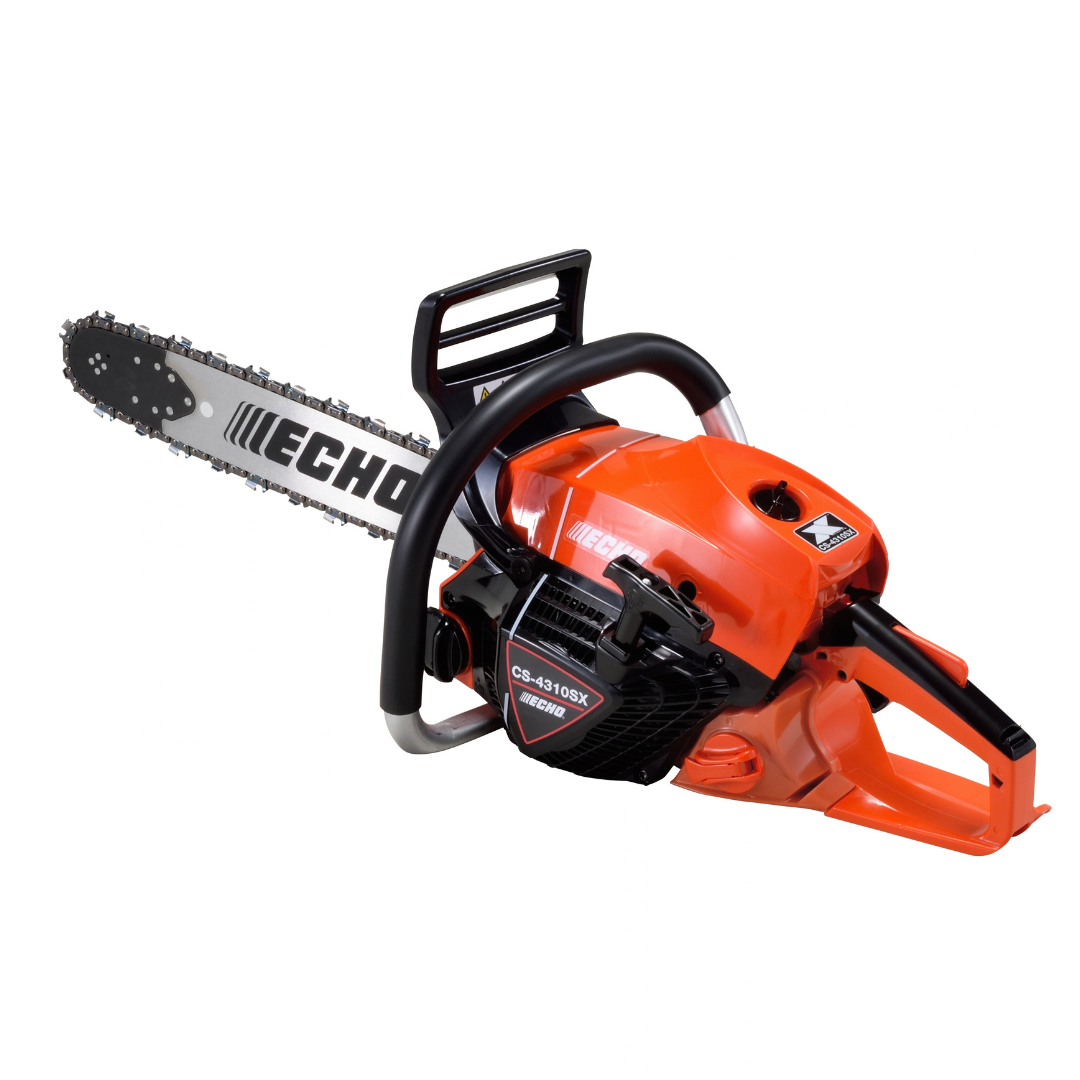

Echo CS-4310SX Chainsaw: Pro-Grade Power with Class-Leading Agility
The Echo CS-4310SX is part of Echo’s elite X-Series lineup, engineered specifically for professional arborists, forestry workers, and demanding landowners who require maximum performance without the burden of a heavy saw. Hailing from Japanese manufacturing excellence, it boasts what is arguably the best power-to-weight ratio in its class.
Key Specifications
Engine Displacement: 42.9 cc professional-grade 2-stroke (split-crankcase construction with a twin-ring piston)
Power Output: 2.3 kW (3.13 ps)
Dry Weight: 4.3 kg (Without bar and chain)
Guide Bar Lengths: Compatible with 13", 14", 16", and 18" (33 to 45 cm) options
Fuel Tank Capacity: 0.40 Litres
Chain Oil Tank Capacity: 0.27 Litres
Saw Chain Pitch: 0.325"
Standout Professional Features
Exceptional Power-to-Weight Ratio: Delivering a formidable 2.3 kW of power from a 43cc engine frame that tips the scales at just 4.3 kg, it punches well above its weight class for fast, aggressive cutting.
Centrifugal Separation Dust-Free System: Derived from Echo's heavy-duty logging saws, this advanced air-intake system uses centrifugal force to spin dust and wood chips away before they ever reach the automotive-style air filter, drastically reducing maintenance intervals.
Heavy-Duty Aluminum Handle: Unlike consumer saws with plastic structures, the CS-4310SX features a rugged aluminum front handle wrapped in a secure, comfortable rubber grip.
3-Point Anti-Vibration Spring System: Effectively isolates the engine from the operator handles, keeping vibration levels low (Front: 3.3 m/s2, Rear: 3.1 m/s2) to minimise fatigue during all-day use.
Momentary Stop Switch: Automatically returns the ignition switch to the "ON" position when turned off, eliminating accidental engine flooding on startup.
Field-Friendly Maintenance Additions: Built with captive drop-prevention bar nuts (so you won't lose them in the dirt), a side-access chain tensioner, tool-less flip-lever oil/fuel caps, and a translucent fuel tank.
