Designed for Tight Rows and Total Control
When standard ride-on mowers are simply too wide to fit, the Orec RM60W Rabbit Mower (CTR03) steps in. Purpose-built for narrow vineyard rows, orchards, and greenhouse cultivation, this ultra-compact ride-on brush mower delivers precise, efficient inter-row mowing where conventional machines cannot go.
Its ultra-compact design and low centre of gravity provide excellent stability, agility, and speed, even on uneven terrain. Featuring an innovative retractable-wing design and offset cutting capability, the RM60W allows operators to mow close to vines while helping prevent trunk damage. Combined with an in-house engineered hydrostatic transmission, it conquers steep terrain and tight aisles with unmatched confidence and simple, intuitive controls.
Key Features & Benefits
Commercial Vanguard 18HP Engine: Powered by a robust Briggs & Stratton Vanguard 570cc (18 hp) V-Twincommercial engine, delivering dependable power reserves and high torque for heavy grass and brush management.

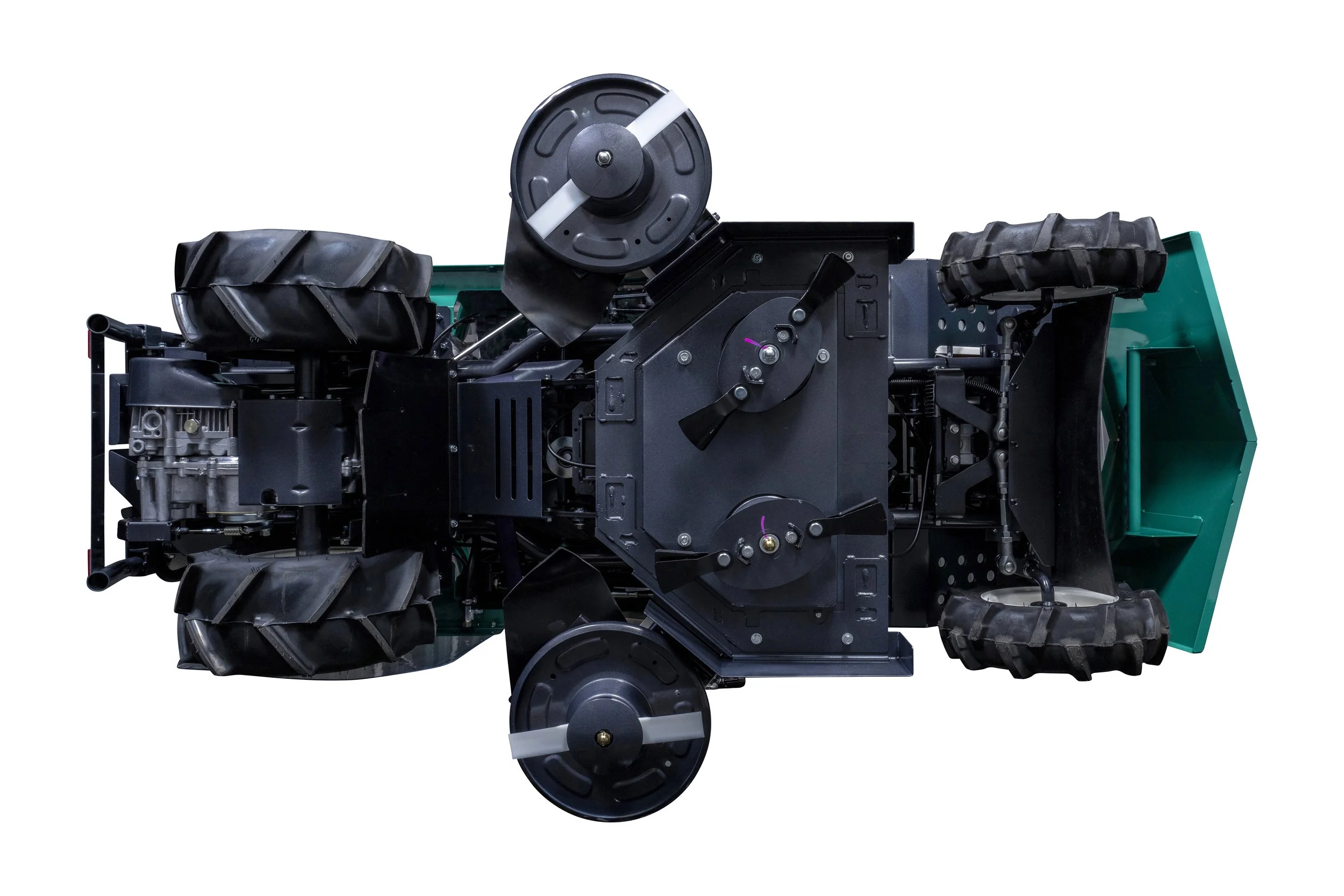

Retractable Wing Protection / Offset Cutting: Equipped with adjustable side cutting wings that can be folded out independently, allowing an adjustable working width from 705 mm to 1,155 mm. This enables operators to mow close to vine trunks and under wires without risking plant or infrastructure damage.
Ultra-Compact Footprint: With a minimum body width starting at just 720 mm, it easily glides through tight 1.5-meter aisles and narrow greenhouse tunnels.
Orec-Engineered Hydrostatic Transmission: Features a specialised Kayaba HVFD series hydrostatic drive system developed in-house, providing smooth, stepless speed control and exceptional balance on slopes up to 15 degrees.
Differential Lock: Integrated differential lock engagement ensures maximum traction when operating on wet, uneven, or slippery agricultural ground.
Technical Specifications
Engine: Briggs & Stratton Vanguard V-Twin (570 cc, 4-stroke, 18 hp)
Working / Cutting Width: Adjustable from 705 mm to 1,155 mm (via retractable side wings)
Cutting Height: 50 mm – 100 mm
Transmission: Hydrostatic (Kayaba HVFD Series)
Travel Speeds:
Forward: 0 – 9.0 km/h
Reverse: 0 – 7.0 km/h
Climbing Capability: Up to 15 degrees
Battery sold separately
Dimensions (L x W x H): 2,000 mm × [720 mm – 1,175 mm] × 1,055 mm
Dry Weight: 310 kg
