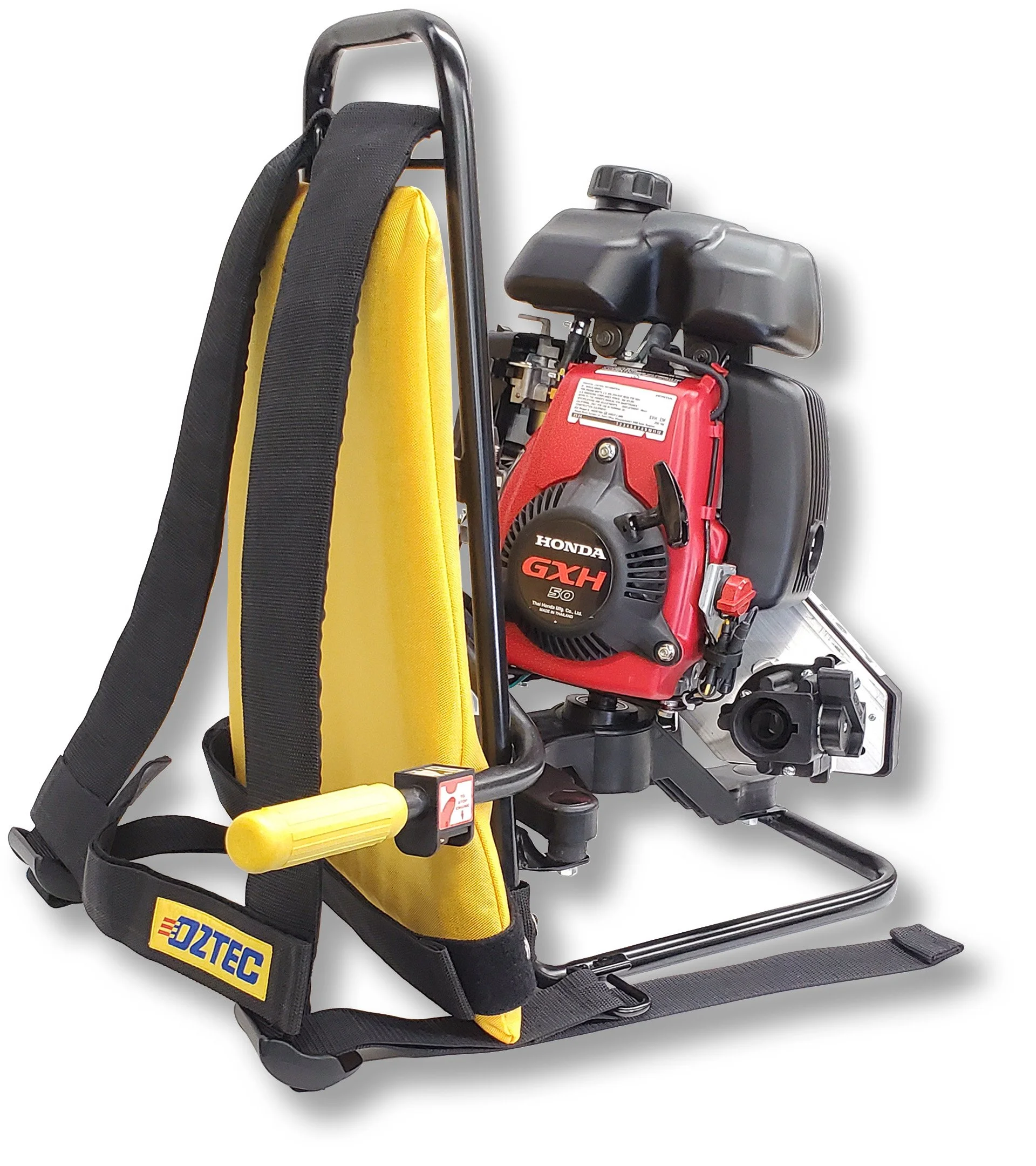

The Oztec BP-50a is a heavy-duty, commercial-grade petrol backpack drive unit engineered to deliver maximum mobility and high-frequency vibration performance on concrete pours. Designed to eliminate power cord hazards and heavy motor dragging, the BP-50a combines reliable Honda 4-stroke power with an ergonomic backpack frame for effortless operation across slabs, footings, elevated decks, and stairwells.
Key Features & Benefits
Honda GX50 4-Stroke Engine: Delivers reliable start-ups, fuel efficiency, and quiet operation without requiring oil-and-fuel mixing.
Ergonomic Backpack Harness: Padded shoulder straps and lumbar support distribute weight evenly to reduce operator fatigue during long pours.
High-Frequency Performance: Maintains high VPM (vibrations per minute) under heavy load to ensure thorough air-void elimination and optimal concrete consolidation.
Quick-Disconnect Coupling: Allows rapid tool-free attachment and detachment of flexible shafts and vibrator heads.
Rugged Steel Roll Frame: Protects the engine block and components from jobsite impacts, drops, and debris.
Kill Switch & Throttle Control: Conveniently mounted on the operator handle for quick power management and safety.
Technical Specifications
Model - Oztec BP-50a
Engine Type - Honda GX50 4-Stroke Overhead Cam Petrol Engine
Engine Output - Approx. 2.0 HP (1.47 kW)
Fuel Type - Unleaded Petrol (No oil mixing required)
Vibration Speed - Up to 10,000–12,000 VPM (varies with head size)
Coupling Type - Oztec Quick-Disconnect Shaft Fitting
Compatible Shafts - Oztec flexible shafts (7 ft to 21 ft lengths)
Compatible Heads - Oztec High-Efficiency Steel and Rubber Heads (up to 2.5 in / 64 mm)
Frame Material - Tubular Steel / Reinforced Composite Base
Weight - Approx. 11.5 kg (25 lbs dry)
Applications
Elevated Slabs & High-Rise Decks: No extension cords or tow-behind generators required.
Footings & Foundations: Easy maneuverability around trench walls and tight formwork.
Stairs & Retaining Walls: Lightweight portable design allows steps to be navigated safely.
Bridge Decks & Civil Infrastructure: Ideal for remote or dispersed pour zones.
